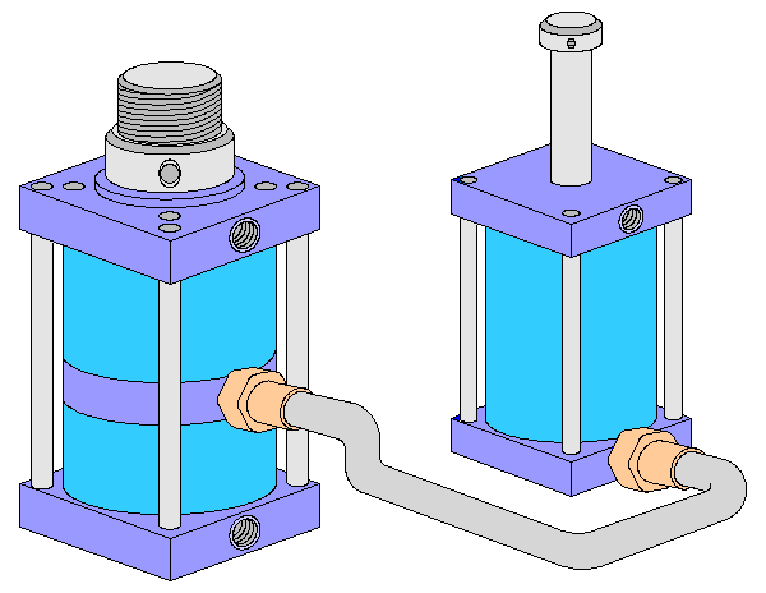

Hydro-Pneumatic Locking Cylinder

Newton Numatics range of Hydro-Pneumatic Locking Cylinders are ideal for applications which require rapid approach, high force squeezing action over a short stroke and rapid return. Newton HPL Cylinders combine the low cost, efficiency and speed of Pneumatics with the huge thrusts provided by Hydraulics. Our HPL Cylinders totally eliminate the usage of expensive Power packs and Controls and require only Compressed air at 5Kg/sq.cm, to develop their rated thrusts.
Newton HPL Cylinders are manufactured in various combinations of Thrusts, Strokes & Power strokes to meet specific customer requirements. They are available in 2t, 4t, 8t, 15t & 30t models having Locking thrusts ranging from 2 tons to 30 tons, & with Stroke length x Power Stroke combinations of 50,75,100 & 150mm x 3, 6 or12mm.
Models. |
Total Stroke. |
Power Stroke. |
2t, 4t, 8t, 15t & 30t. |
50mm. |
3 & 6mm. |
2t, 4t, 8t, 15t & 30t. |
75,100 & 150mm. |
3, 6 &12mm. |
Output Thrust at various Pressures
Size |
Output Thrust in Kgf at various Input Pressures |
|||
4kg/Cm2 |
5kg/Cm2 |
6kg/Cm2 |
7kg/Cm2 |
|
2T |
1600 |
2000 |
2400 |
2800 |
4T |
3200 |
4000 |
4800 |
5600 |
8T |
6400 |
8000 |
9600 |
11200 |
15T |
12000 |
15000 |
18000 |
21000 |
30T |
24000 |
30000 |
36000 |
42000 |
Newton HPL Cylinder, developed indigenously, is a highly reliable product, which provides years of trouble–free service, with minimum maintenance.
