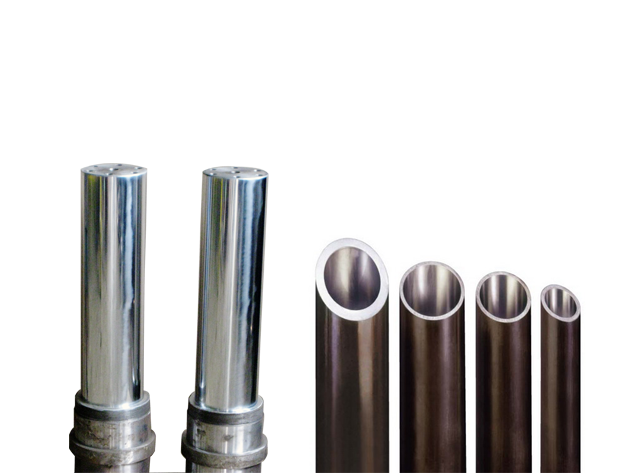

Hard Chrome Plated Shafts & Tubes

We import and supply high quality Hardchrome Plated Shafts to serve you the growing essential needs of today's industries day to day functions.

Readymade EN8D Hard Chrome Plated Shafts

Specifications

  • The Shaft Is Processed With Precision Center-Less Grinding And Hard Chrome Plating.
  • Plating Thickness min 20 microns.
  • Standard length for mass product 3000 mm or Order Specific.

Application

  • Piston rods for Hydraulic / Pneumatic cylinders, Guide rod for Liner motion, sliding shaft, column, automatic machinery, pillar and tie rod for injection molding machines, etc.
  • Sizes Available from diameter 12 TO 90.

Readymade Hard Chrome Plated Imported LM Shaft

Specifications

  • CK 45 Grade.
  • Thickness of hard chrome layer: 20 micron min.
  • Hardness of hard chrome layer: HV 800 min.
  • Cash depth: 1.5mm - 2.5mm.
  • The hardness of induction hardening: HRC 58±2
  • External diameter accuracy: h7.
  • Standard length for mass product 3000 mm.

Application

  • Guide rod for Liner motion, sliding shaft, column, automatic machinery, pillar and tie rod for injection molding machines, etc.
  • Sizes Available from diameter 8 to 60.

Readymade Imported St52 BK+S Condition Honed Tubes

Product Characteristics

High quality, cold drawn, high strength carbon tube, the internal diameter is grinded with precision machinery.

Specifications

  • Method of internal surface finishing: Honed or skived roller burnished
  • Roughness of internal diameter surface: 0.125µm-0.4µm
  • Internal diameter Accuracy: H9/H8 Tolerance.
  • Straightness: 0.5/1000 max.
  • Internal Diameter available from diameter 40mm to 320 mm.
