Custom Air Cylinders

Air Cylinders are commonly known as Linear Actuators that used in many applications in Machine Tool Industry, Process Valve Industry, Tyre Industry, Paper Industry, and Process Industries such as Cement, Sugar, Chemical, Petro-Chemical and General Engineering Industries.

Newton Numatics offers Air Cylinders in Bore sizes from 25mm to 350mm, Strokes up to 1000mm (more than 1000mm can be designed based on client's request) with various Mounting Styles to suit your requirements.

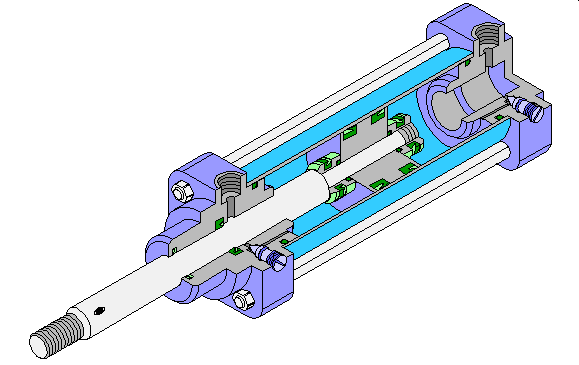

Double Acting Air Cylinders

Single Acting Air Cylinders

Spring Advance

Spring Return

Special Cylinders

Thro' Rod

Duplex

Tandem

Custom Made

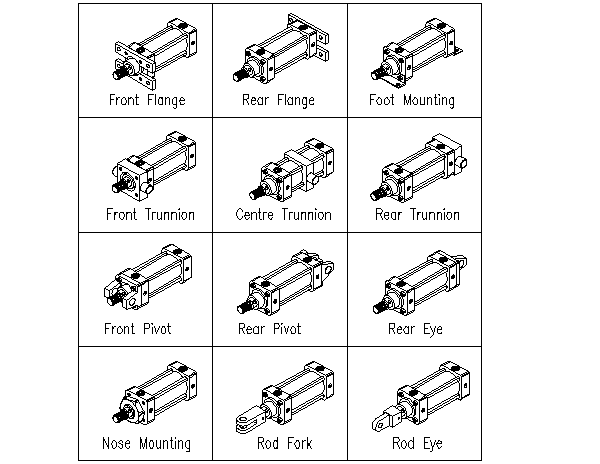

Mounting Styles for Double Acting Air Cylinders

Specifications

End Caps: Precision machined from close grain Cast Iron.

Barrels: Aluminium extruded and precision honed tubes up to 127mm

Ms seamless, honed and hard chrome plated tubes from 150mm to 350mm bore.

Piston: Precision Machined from Aluminium extruded bars up to 75mm & Close grain C.I from 102 to 350mm.

Piston Rod: Precision ground, polished Hard Chrome plated rods from En-8.

Seals: Nitrile (Buna-N) standard, Viton & other Special Elastomers, on request.

Bore Sizes: From 25mm up to 350mm.

Strokes: Up to 1000mm.( >1m On Request)

Cushions: Adjustable & standard on bore sizes from 38mm, upwards.

Newton Numatics range of Air cylinders include Custom made Linear actuators to suit the design and dimensional requirements of Original Equipment manufacturers or customers and other bulk consumers.

Custom Air Cylinders

Custom built cylinders are manufactured to suit the exact application requirements. A few samples are shown below. Please contact us for further details.

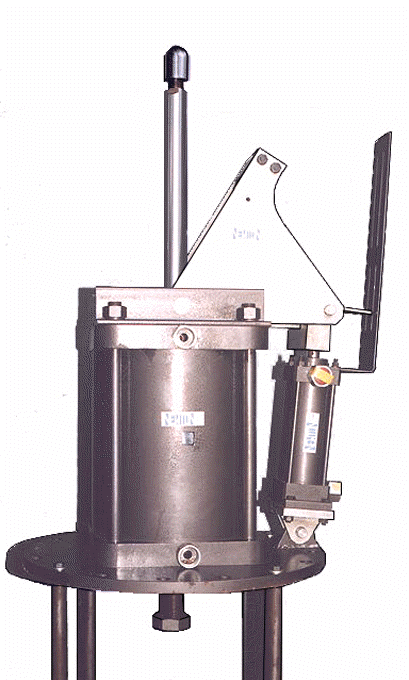

Pneumatic Actuator Assembly for Massecuite Valve.

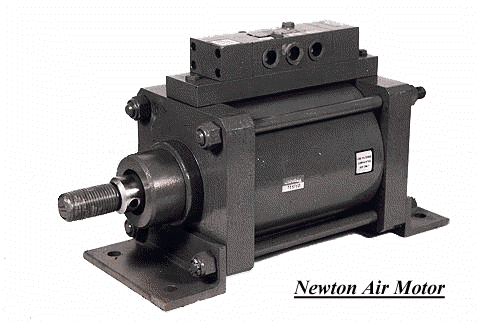

Linear Air Motor

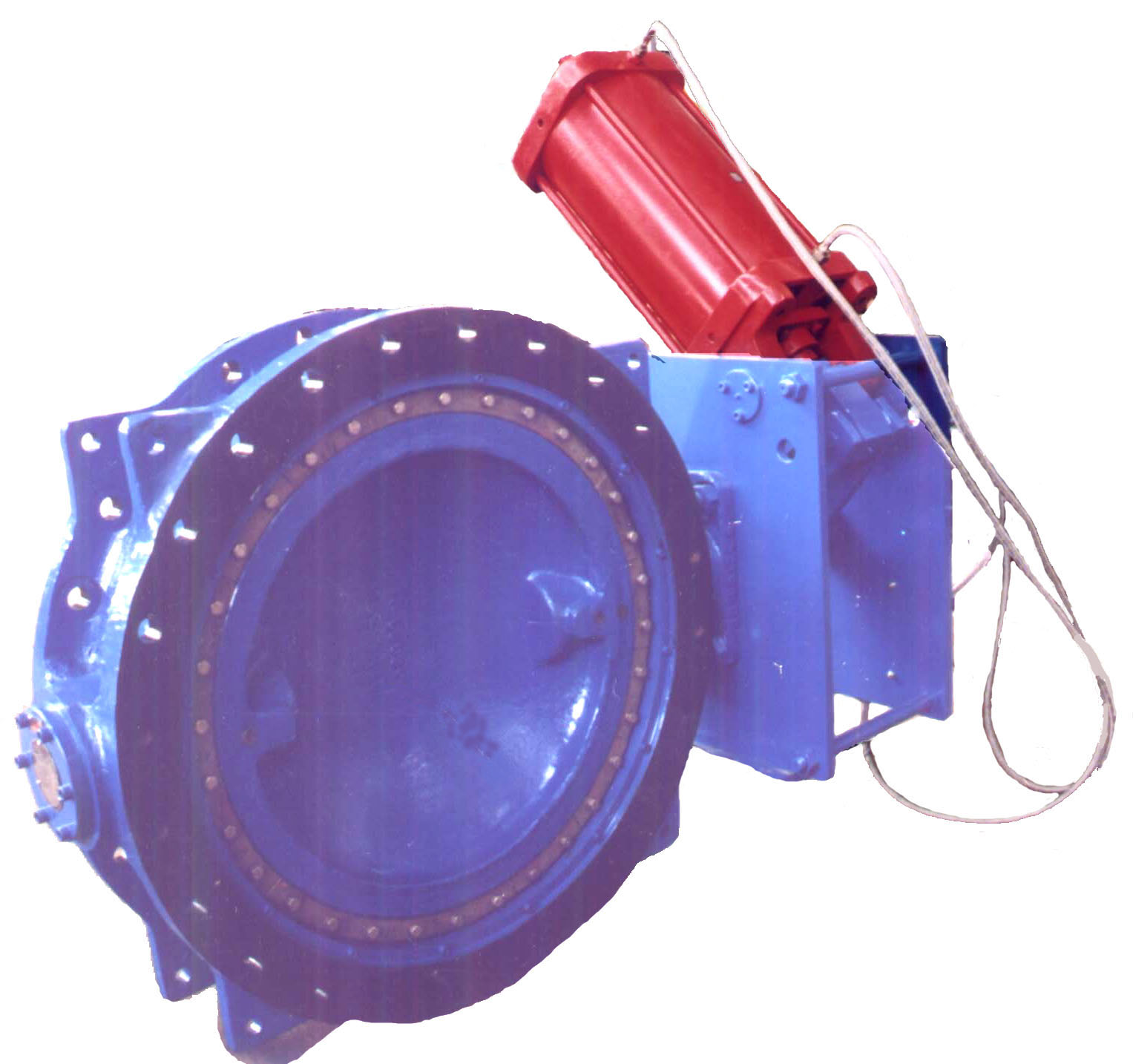

Pneumatically Actuated Butterfly valve with Newton Air Cylinder
